Modular Flexible Configuration
Multi-Panel
Up to 6 Panels
Integrated
Flyscreen Ready
The add-on frame system enables effortless multi-sash installations, allowing the system to be extended and adapted to suit varying opening widths and architectural layouts without bespoke fabrication.
A unique dual-function flyscreen sash doubles as a structural mullion, reducing component count while maintaining clean sightlines and maximising the usable glazed area across all configurations.

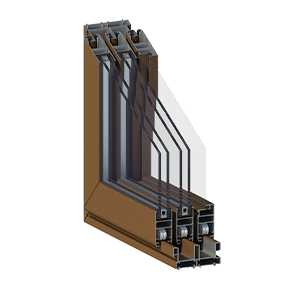

The KS31.1 CL ES is a modular frame sliding system engineered for dependable, long-term performance. It accommodates a maximum panel size of Window: 1.0 m (w) × 1.8 m (h) and Door: 1.0 m (w) × 2.1 m (h) and accepts glass thickness from 5 to 22 mm across all track configurations.
With a wind load capacity of up to 2 kPa and a robust modular frame construction, the system performs reliably across diverse climatic conditions and project types.
Single and multiple locking mechanisms provide a high level of security, while the integrated flyscreen-as-mullion feature and add-on frame system ensure the KS31.1 CL ES remains the most practical and adaptable sliding solution available.
Modular Frame
Integrated flyscreen
| Sash Dimension | Window 31 mm (D) x 61,5 mm (H) Door 31 mm (D) x 75 mm (H) |
| Thermally broken | No |
| Glass Thickness | 5-22 mm |
| Full hidden Drainage | No (Drainage Cap remains visible) |
| Thermal Insulation Uf | - |
| Sound Isolation | Designed for deduction upto 30 db |
| Rw (C;Ctr) | - |
| STC | - |
| OITC | - |
| Wind Resistance | |
| Tested according EN 12211 | 2000 Pa |
| Classified according EN 12210 | Class B5 |
| Water Tightness | |
| Tested according EN 1027 | 200 Pa |
| Classified according EN 12208 | Class 5A |
| Air Permeability | |
| Tested according EN 1026 | 300 Pa |
| Classified according EN 12207 | Class 3 |
| Material | Aluminium alloy 6063 T6 |
| Size Limitations | Window 1000 x 1800 mm Door 1000 x 2100 mm |
The KS31.1 CL ES is a modular frame aluminium sliding system available in two-track and three-track configurations, with or without an integrated fly mesh track. The system supports up to 6 panels with a maximum individual panel size of window: 1.00 m (w) × 1.8 m (h) and door: 1.0 m (w) x 2.1 m (h). Glass thickness from 5 mm to 22 mm is accommodated. Wind load capacity is rated up to 2 kPa. An add-on frame system enables straightforward multi-sash installations, and the flyscreen sash can be used as a structural mullion to optimise sightlines and reduce component count. Single and multiple locking mechanisms are provided as standard to ensure a high level of security.
The system is suited to residential and commercial sliding door and window applications requiring flexibility, modularity, and reliable performance.
| Profile basic depths | Window 31 mm (D) Door 31 mm (D) |
| Profile Face Widths | Window 61.5 mm (H) Door 75 mm (H) |
